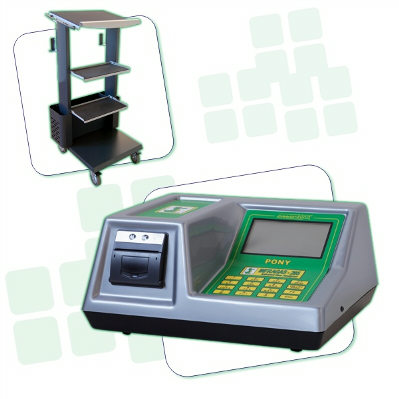

INFRAGAS-305

Heavy-duty, Stand-alone, Exhaust Gas Analyzer

Available as 4-gas or 5-gas version. Suitable for testing emissions of 8-cycle engine-equipped vehicles of any kind, recommended for intense use as in statutory tests. The INFRAGAS 305 is also equipped with oil filter and air inlet for purging the gas sampling circuitry for heavy-duty use on 2-stroke engines.

To be used in conjunction with external pc running ASSEMBLAD software or connected to ASSEMBLAD Smoke Meter for stand-alone combi gas/smoke emission test station.

Approved for statutory tests. Recommended for heavy duty use. Recommended for heavy duty use.

INFRAGAS-305

Power and size
Power supply	12V DC or 220V AC
Weight	4.2 Kg
Dimensions (LxHxP)	344x160x270mm

Download Depliant

Data and characteristics are subject to change without prior note. Please ask your Distributor to confirmation

MAIN FEATURES:

Available as 4-gas (CO, CO2, HC and O2) and 5-gas (CO, CO2, HC, O2 and NOx) version.
Capable to run any emission test procedure on 2-and 4- stroke 8-cycle engine using any kind of fuel (petrol, LPG, CNG)
Equipped with reinforced dual-stage filters for heavy-duty use.
equipped with coalescent oil filter and air inlet with pressure reducer for purging the gas sampling circuitry for heavy-duty use on 2-stroke engines.
ASSEMBLAD Service software available for remote monitoring.
Built-in backlit lcd display, printer and keypad.
Automatic zeroing function.
Barometric pressure compensation.
High-efficiency gas filtering system with WaterstoP® device.
Fast warm-up time (typical 2 minutes).
Easy and quick maintenance and calibration.

Approvals:

OM00620EST004c/NET2

OM00621EST001cm/NET2

MID: SK 14 - 002 MI - 010

Measure	Range	Resolution
CO	0 ÷ 10 Vol%	0,001 Vol%
CO2	0 ÷ 20 Vol%	0,01 Vol%
HC	0 ÷ 15000 ppm	1 ppm
O2	0 ÷ 25 Vol%	0,01 Vol%
CO Corr.	0 ÷ 15 Vol%	0,01 Vol%
Nox	0 ÷ 5000 ppm	1 ppm
Lambda	0,5 ÷ 1,7	0,001
RPM	0 ÷ 9999 rpm	1 rpm/1′
AFR (*)	7 ÷ 23	0,1

(*) OPTIONAL
